IN-Line UFM-868-GF(Х) Flowmeter
The UFM-868-GF(Х) flowmeters are designed to measure the velocity, volumetric flow rate (volume) of associated and free petroleum, flare gases under operating conditions.

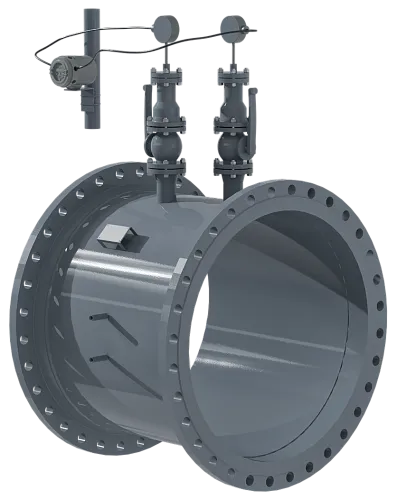

The devices consist of ultrasonic transducers (ultrasonic sensors) installed on the flowcell with flanged connections and an electronic module. Ultrasonic transducers can be installed directly on the flowcell, as well as using a lubricator-type extraction tool.
An ultrasonic transducer is a piezocrystal mounted inside a cylindrical steel housing. The connection of the ultrasonic transducer to the electronic module is made inside an explosion-proof enclosure in which a preamplifier can be placed.
The operating principle of flowmeters is based on determining the time difference between ultrasonic pulses traveling with and against the flow of the working fluid.
Flow meters are available in different configurations according to the pipeline connection method:
- spool piece with flange connections
- on-site mounting on the existing pipeline
Technical specifications
-
Pipeline size 50 – 3000 mm
-
Sensor material titanium, Monel, Hastelloy, stainless steel
-
Pipeline material All metals. When using pipes made of other materials, consult with DS Controls JSC
-
Pressure class of the flow part 20 MPa
-
Measuring range 4000:1
-
Flow rate 0,08-120 m/s
-
Ambient temperature -40°C to 60°C
-
Cable length 330 m
